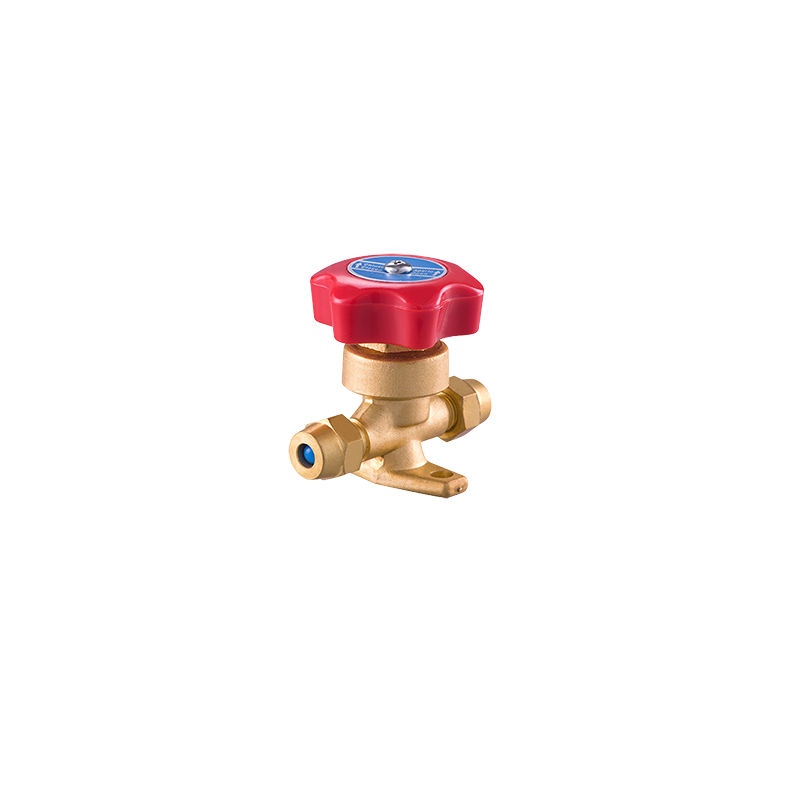

Manual valve
Features:
Can be used with all fluorinated refrigerants;
Equipped with three stainless steel diaphragms, preventing leaks throughout the valve's entire service life;
PTFE valve plate, allowing the valve to close tightly with minimal torque;
Special valve cover design to prevent moisture from entering the valve body.
|
型号 |
接口 |
外形尺寸(mm) |
重量(g) |
温度范围(℃) |
最大工作压力(Bar) |
Kv值(m³/h) |
|||||
|
Inch |
mm |
H1 |
H2 |
L1 |
d |
l |
|||||
|
MN-DG4 |
1/4"SAE |
|
85.5 |
67 |
68 |
4.5 |
38 |
305 |
=J25:K25=手阀J35 |
35 |
0.40 |
|
MN-DG8 |
3/8"SAE |
|
74 |
325 |
1.00 |
||||||
|
MN-DG10 |
1/2"SAE |
|
78 |
330 |
1.45 |
||||||
|
MN-DG13 |
5/8"SAE |
|
1.70 |
||||||||
|
MN-DG16 |
3/4"SAE |
|
113 |
89.5 |
98 |
6.2 |
50 |
695 |
3.50 |
||
|
MN-DG4s |
1/4"ODF |
|
85.5 |
67 |
57 |
4.5 |
38 |
300 |
0.40 |
||
|
MN-DG8s |
3/8"ODF |
|
61 |
305 |
1.00 |
||||||
|
MN-DG10s |
1/2"ODF |
|
70 |
1.45 |
|||||||
|
MN-DG13s |
5/8"ODF |
16 |
71 |
1.70 |
|||||||
|
MN-DG16s |
3/4"ODF |
|
113 |
89.5 |
92 |
6.2 |
50 |
685 |
3.50 |
||
|
MN-DG19s |
7/8"ODF |
|
94 |
690 |
|||||||
